曲线溜槽系统

曲线溜槽系统采用DEM离散元模型，通过计算流体力学、并进行有限元进行流动特性的验证，控制物料流动。对于散料转运过程中普遍存在的扬尘、堵料、冲击大等问题效果独特。对于减少转运过程物料块的破碎具有良好的效果。

The curved chute system adopts a DEM discrete element model, which verifies the flow characteristics through computational fluid dynamics and finite element analysis to control material flow. The effect is unique for the common problems of dust, blockage, and large impact during the transportation of bulk materials. It has a good effect on reducing the crushing of material blocks during transportation.

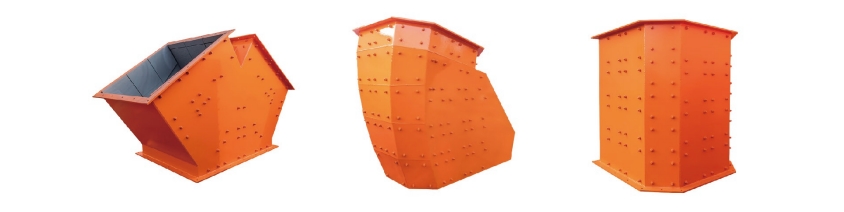

落料管DROPPING PIPE

控制物料流动速度在一定范围，减少诱导风及扬尘产生，物料沿着落料管流动，形成集束，减少细小颗粒扩散到空气中形成粉尘的几率；

物料无冲击地流动，物料之间和物料与管壁无碰撞，同时也减少落料管的磨损，延长内衬寿命数倍。

Control the flow rate of materials within a certain range to reduce the generation of induced wind and dust. The materials flow along the discharge pipe, forming clusters and reducing the probability of small particles diffusing into the air to form dust;

The material flows without impact, and there is no collision between materials and the pipe wall. At the same time, it also reduces the wear of the feeding pipe and extends the service life of the lining several times.

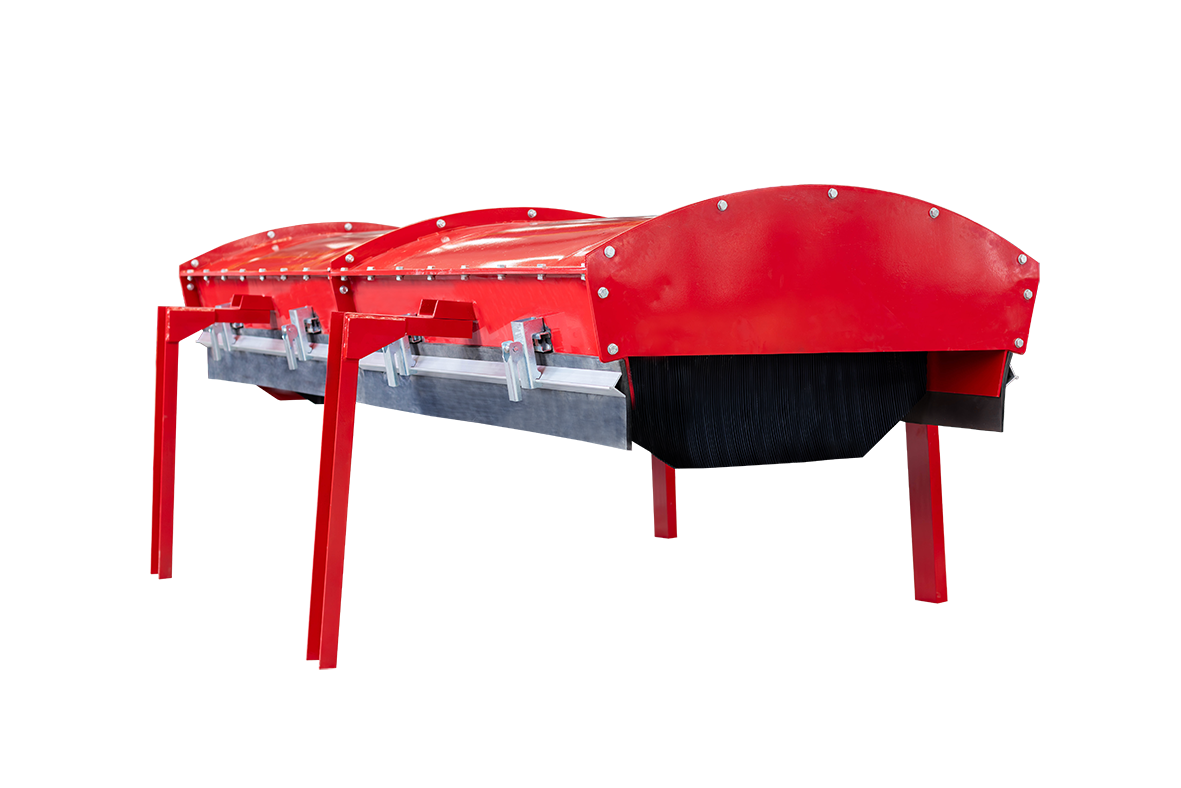

导料槽GUIDE GROOVE

在所有导料槽内部加装抑尘挡帘，防止空气直线运动，从而使浮尘脱离空气沉积下来。大部分粉尘将返回至主要物料层上，不会泄漏到外面；

皮带落料点处还可加装皮带支撑条和双层防溢裙边，起到更好的密封作用，防止空气旋流引起的高气压产生粉尘外泄。

Install dust suppression curtains inside all guide channels to prevent air from moving in a straight line, thereby allowing floating dust to detach from air deposition. Most of the dust will return to the main material layer and will not leak out;

Belt support strips and double-layer anti overflow skirts can also be installed at the belt feeding point to provide better sealing and prevent dust leakage caused by high air pressure caused by swirling air.

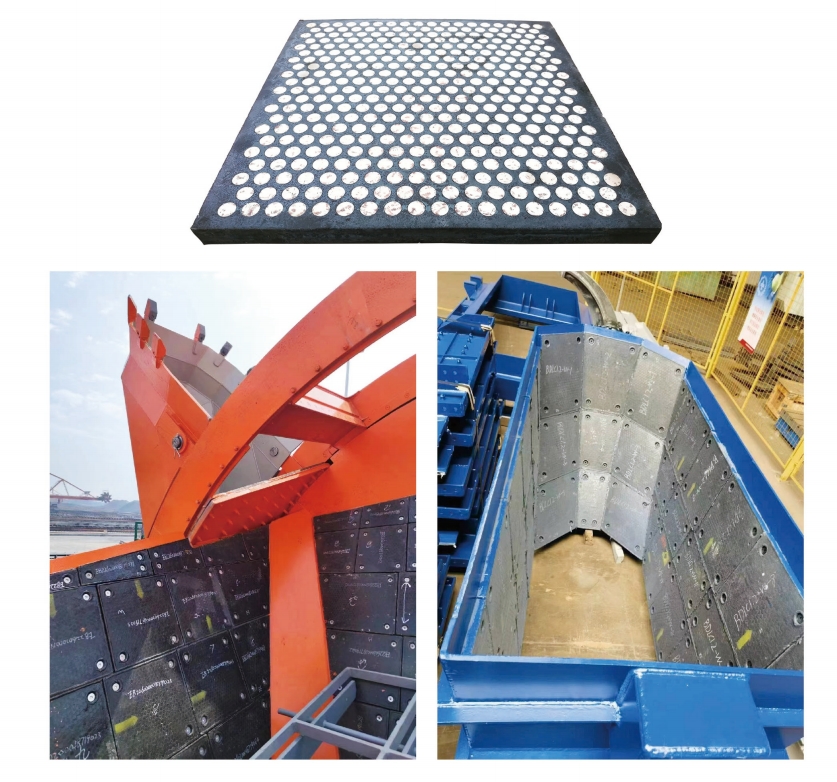

高耐磨陶瓷金属复合衬板

HIGH WEAR-RESISTANT CERAMIC METAL COMPOSITE LINING PLATE

高耐磨陶瓷嵌入式设计，提高了衬板的耐磨性能；金属基结构解决了陶瓷不抗冲击的特性，两者完美结合，不论是抗冲击还是抗磨损，都达到了预期效果。采用铸造成型工艺，衬板的规格和形状不受限制，安装方式也可以根据工况不同而制定，极大的展现出产品的适应性能力。

High wear-resistant ceramic embedded design improves the wear resistance of the lining plate; The metal based structure solves the non impact resistance of ceramics, and the perfect combination of the two achieves the expected effect in both impact and wear resistance. By adopting a casting process, the specifications and shape of the lining plate are not limited, and the installation method can also be formulated according to different working conditions, greatly demonstrating the adaptability of the product.
