托辊产品

XR-Seiko拥有专业的托辊自动化生产线，无论是轴加工、辊体加工，还是组装、焊接，都

能够做到高精度、强稳定性。可实现连续高效生产，托辊直径可达219mm。目前公司托辊已经获批煤安证书，满足井下工况安全使用。公司配有专业的人才，从事输送机行业15年以上，并有多年国外品牌公司设计、生产及管理经验，吸纳了国内外先进的质量控制体制，保证公司品牌不仅要做强、做稳国内市场，也能满足国际需求。

XR-Seiko has a specialized production line for rollers, which enables high precision in both shaft machining and roller body machining, as well as assembly and welding,

strong stability. Continuous and efficient production can be realized.

The diameter of the rollers can be up to 219mm.

The company is equipped with professional personnel, engaged in the conveyor industry for more than 15 years, and has many years of design, production and management experience in foreign brand companies.

Absorbing the advanced quality control system at home and abroad.

Ensure that the company's brand not only to strengthen and stabilize the domestic market, but also to meet the international demand.

We can also meet the international demand.

托辊生产流程示意图

ROLLER PRODUCTION FLOW DIAGRAM

管才端面加工TUBE ENDS CHAMFERING                     管材供给TUBE FEEDING           管材加工机TUBE  CUTTING                 管来料检查TUBE CHECK

→

喷气清扫AIR BLOWINC INTO TUBE

→

将轴送入本体SHAFT FEEDING INTO TUBE                   轴供给SHAFT FEEDING           轴加工机SHAFT MAGHING             轴来料检查SHAFT CHECK

→

轴承座压入本体HOUSING PRESSING INTO TUBE      轴承座供给HOUSING FEEDING     轴承座加工压人BEARING PRESSING INTO HOUSING    轴承座脱脂磷化HOUSING DEGREASING AND PHOSPHATING    轴承座自动冲压AUTOMATIC HOUSING STAMPING

→

机械手自动焊接MANIPULATOR WELDING

→

内密封件压入本体INNER-SEAL PRESSING INTO HOUSING    密封件供给  SEAL FEEDING           润滑脂自动注人 AUTOMATICGREASE FILLING

→

外密封件压入本体OUTER-SEAL PRESSING INTO HOUSING      机械手MANIPULATOR

→

轴用弹簧挡圈压入SNAP RING FITTING

→

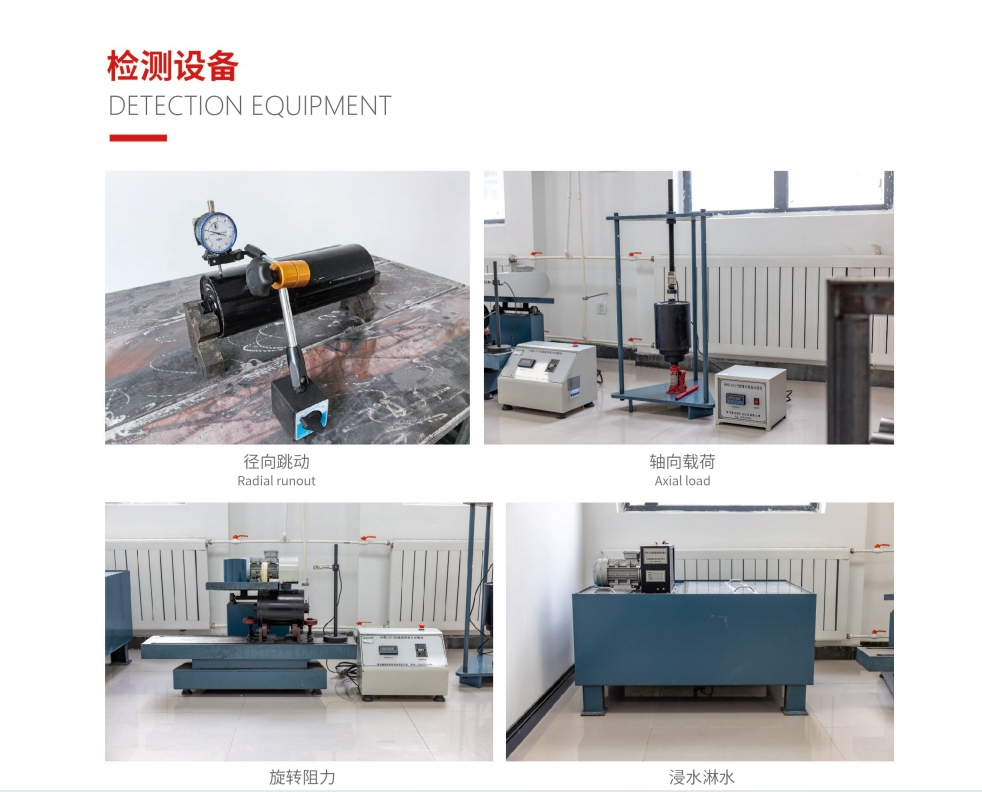

径跳和轴串检查RUNOUT AND AXIAL MOVEMENT CHECK        装配线ASSEMBLY LINE

→

不合格DISQUALIFIED          合格PASSED       表面处理SURFACE TREATMENT     喷漆PAINTING     检验CHECK    包装PACKING     发运DISPATCH

→

删除ELIMINATE

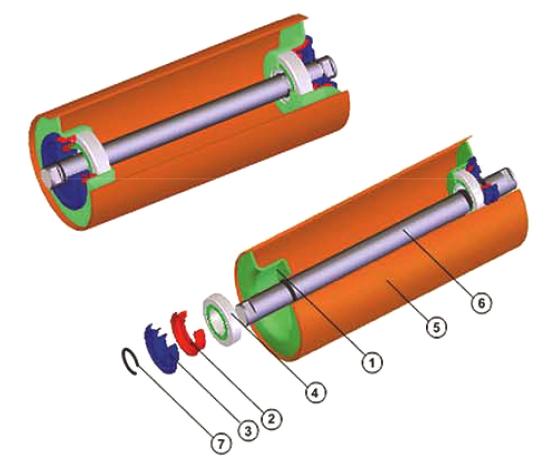

托辊结构

ROLLER STRUCTURE

1.轴承座    HOUSING

2.内密封圈     INNER SEAL

3.外密封圈    OUTER SEAL

4.轴承    BEARING

5.钢管    TUBE

6.轴     SHAFT

7.轴用挡圈    SNAP RING

托辊ROLLER

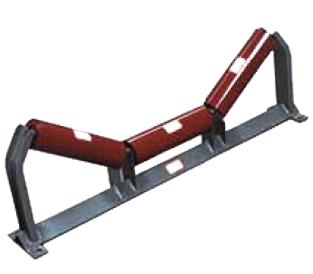

托辊组IDLER

槽型托辊组、过渡托辊组、可变槽角过渡托辊、缓冲托辊组、V形托辊组、V形梳形托辊组、反V形托辊组、平行上托辊组、平行下托辊组、平形梳形托辊组、螺旋托辊组、挡辊式上调心托辊组、摩擦上调心托辊组、摩擦上平托辊组、锥形上调心托辊组、挡辊式下调心托辊组、摩擦下调心托辊组、锥形下调心托辊组。

Bad rollers, transition rollers, variable groove angle transition rollers, buffer rollers, V-shaped rollers, V-shaped combed rollers, anti-V-shaped rollers, parallel upper rollers, parallel lower rollers, flat combed rollers, spiral rollers, stopper rollers, friction upper adjusting rollers, friction upper flat rollers, conical upper adjusting rollers, stopper lower adjusting rollers, friction lower adjusting rollers, conical lower adjusting rollers.

托辊-密封件ROLLER SEAL ARRANGEMENT

密封件由内外两件组成非接触式迷宫密封,防尘防水性能好,旋转阻力低，内外密封件的材质同为PA/ABS。迷宫中充入优质锂基润滑脂。

Selects labyrinth sealing arrangement whichconsists of two non-contact seals (inner seal and outer seal)and is waterproof with low rotation drag.All seals are made from PA/ABS, uses top lithium-based grease to fill seals.

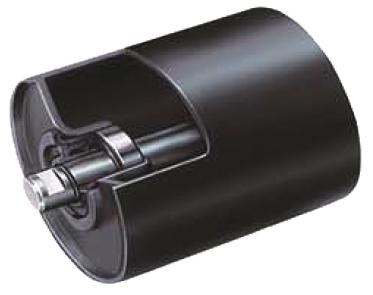

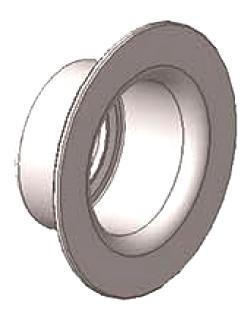

托辊-轴承座ROLLER-HOUSING

轴承座采用进口SPCC优质冷轧带钢经多次冲压成型,厚度均匀,表面质量好,强度高;尺寸精度高,一致性好。轴承座内径直接冲压到轴承配合尺寸及表面粗糙度,与管配合尺寸经专用机床车削加工到设计值。轴承座表面进行脱脂、磷化处理,以增强漆膜附着力。

Housing is completed through sequential punching on imported superior steel sheet (SPCC).Finished housing features even thickness,good surface, precise measurement and consistency.Inner radius of housing completed is in conformity with designed value and roughness requirec by bearing and Lube.The surface of housing is phosphated and degreased to improvecohesion of painting film.

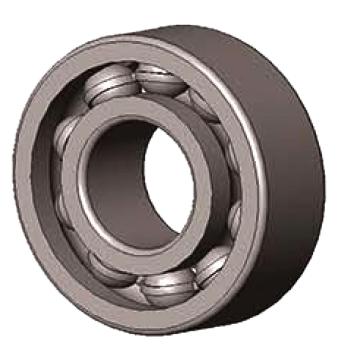

托辊-轴承ROLLER-BEARING

轴承采用双侧密封的深沟球轴承,游隙选用4(JIS C3)级,内部空间的1/2~2/3加入长效锂基润滑脂,确保轴承的有效使用寿命。

Roller bearing uses double seal (zz) deep groove ball bearing with C3 clearance.Volume of lithium based grease filled inside ranges from 1/2 to 2/3,which secures the long service life.(Note:in view of visibility,the bearing on right graph is omitted.)

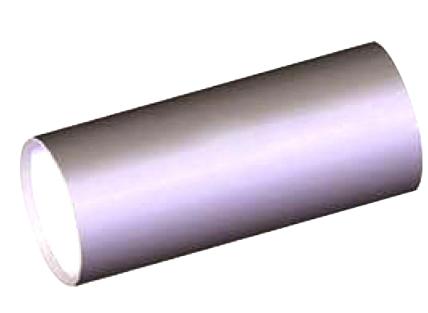

托辊-管ROLLER-TUBE

管材选用行业知名厂家生产的托辊专用钢管,并特殊要求其进行清除内毛刺的处理，以保证托辊具有良好的动平衡和静平衡性能。

Customized roller tubes are purchased from famous    manufacturers.The tubes for roller must be those with excellent dynamic & static balance and free from inner burs.

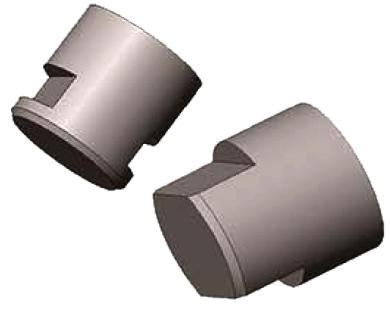

托辊-轴ROLLER-SHAFT

公司不仅对尺寸公差和表面质量提出特殊要求,其余的参数指标也要求不低于国家推荐标准GB/T 3078-94。冷拉圆钢制成的光拉轴,具有良好的抗腐蚀性能和刚度,整体硬度得到了提高,有效地延长了托辊的使用寿命。

Has strict control over toierance of shaft dimension and surface quality. The other technical indicator should be no less competitive than that of GB/T 3078-94.Uses cold-drawn bright round steel， which is superior in corrosion resistance and stiffness.The service life can be well secured and prolonged.

防水密封结构托辊特点介绍

THE FEATURE INTRODUCTION OF ROLLER WITHWATERPROOFSEALS STRUCTURE

防水密封结构系列托辊在不失原有性能的基础上,优化托辊密封结构，防止油脂外溢，有效降低水（淋水、浸水)及粉尘(环境微粉、管体内部污物）对轴承的损害,进一步提高托辊防尘、防水性能。

密封结构特点:

1、内密封有效防止钢管内粉末、粉尘进入轴承,降低轴承的磨损。

2、轴用密封件和孔用密封件组成非接触式迷宫密封,迷宫中充入锂基润滑脂，旋转阻力低,内外密封同为轻质材质。具高机械强度和刚性;最高的疲劳强度;环境抵抗性、耐有机溶剂性能好;耐反复冲击性强;复原性良好;具自润滑性、耐磨性良好:尺寸安定性优。

3、外端面密封采用专用密封橡胶,耐油性极好，耐磨性较高，耐热性较好,粘接力强。配合轴用端盖的应用,托辊在恶劣的工况下具有良好防尘防水性能。

在优化密封性的同时，应用新结构轴承座，使得该系列托辊具有更大的承载能力，并扩大产品的规格范围,最大辊径∅219mm，最大轴径∅70mm，最大辊长2500mm，使用寿命在50000小时以上,满足市场需求。

Waterprool seals structure roller series optimize seals stucture base on the original performance,which prevent grease spilling,effectively reduce the damage of the bearing caused by water (water spray, watetimmersion) and dust (environmental powder, tube intemal dirt),further improve waterproof and dustprootperformance of the roller.

Seal structure features:

lnner seal effectively prevents powder and dust of the steel tube inside entering into the bearing, reducesbearing wear.

Non-contact labyrinth seal is consisted of seal for shaft and seal for hole,inner and outer seal are both lightweight material, the lithium-based grease is filled into labyrinth sealing arangement with low rotation drag.'The features are high mechanical strength and rigidity; highest fatigue strength;good performance ofenvironmental resistance,organic solvents resistance; strong resistance to repeated impac, excellentresilience,self-lubrication, abrasion resistance and dimensional stability.

Outer end face seal takes special seal rubber,superb oil resistance,high wear resistance,good heatresistance and strong adhesiveness: Complexing the outer cover for shaft,i t greatly improves waterproof anddustproof performance of the roller in harsh working condition.

While optimizing sealing, uses new structure bearing housing,which makes this series ollers havelarger loading

capacity,and expands the range of product specification ,the max roller diameter is  219mmn , max shaltdiameter is 70mm, max length is 250Omm,the service life is more than 50 ,000 hours, to satisly the market demand

1-钢管   Tube       2-轴   Shaft       3-轴用内卡簧     Snap Ring        4-内密封    Inner Seal        5-轴承   Bearing       6-孔用密封    Seal for hole

7-轴用密封     eal for shaft           8-孔用端盖    Cover for hole      9-橡胶密封圈     Rubber seal ring

10-轴用外端盖     Outer cover for shaft             11-轴用外卡簧      Outer snap for shaft

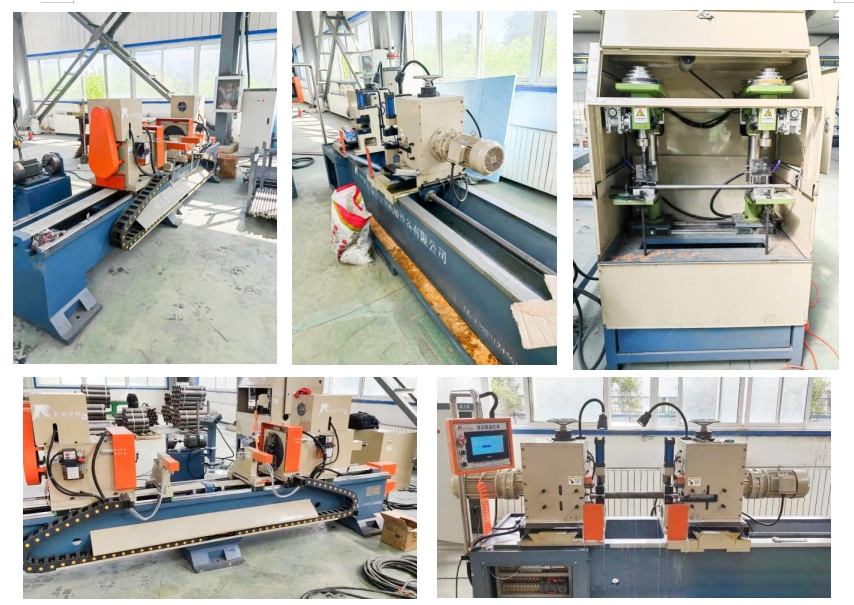

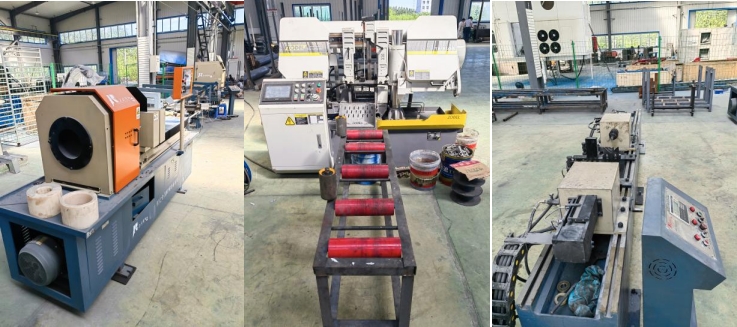

托辊生产设备

IDLER PRODUCTION EQUIPMENT
